Faraday - EMP Vehicle Protection Kit [2 Vehicle Ferrites, 1 T.R.A.P, & 1 T.R.A.P-B]

The EMP Vehicle Protection Kit is a combination of the different vehicle protection devices. Use these on your vehicle to protect it from transients like load changes, lightning strikes, conducted transients, and even an EMP. This bundle includes 1 T.R.A.P., 1 T.R.A.P.-B, and 2 Vehicle Ferrites. Save money when you purchase these parts together.

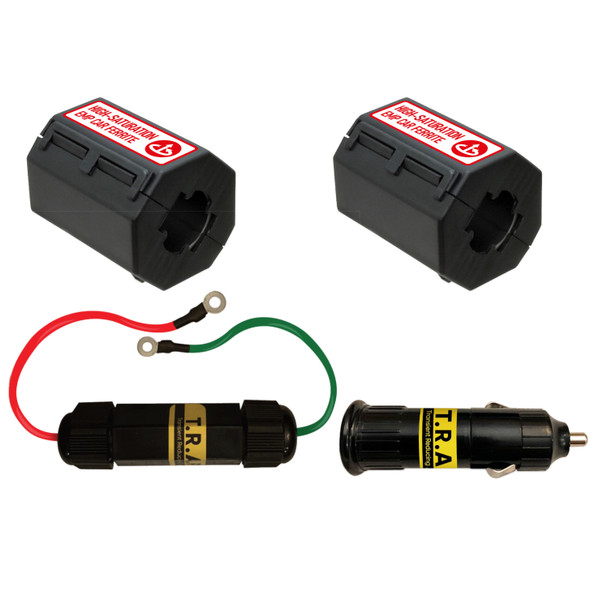

Vehicles are protected using three products: T.R.A.P.s, T.R.A.P.-Bs, and High-saturation Car Ferrites

The T.R.A.P.™ Transient Reducing Auxiliary Plug is a multi-purpose transient protection device. Each plug contains a 5,000-watt transient voltage suppression device with a turn on time under 1 picosecond. The T.R.A.P.™ is easy to install – just plug the device into the 12-Volt auxiliary receptacle ( cigarette lighter). The device is 3″ long, so please ensure there is room to insert the plug.

The T.R.A.P.™-B contains the same 5,000-watt transient voltage suppression device in a form that can be easily connected across a vehicle’s battery terminals.

High-saturation ferrites can be installed on the battery wires to reduce high-frequency current transients.

How can the T.R.A.P.™ be effective against an EMP when it’s so small?
The danger to vehicles from an EMP is the high voltage that is introduced on the cables from E1 and E2. Those transient voltages are extremely brief in time (from nanoseconds to microseconds) and can therefore be suppressed using small devices. This is distinctly different than the case with homes, which would also experience a powerful E1 current surge from the power grid.

Can you use more than one T.R.A.P.™ in a vehicle?
Absolutely. Putting energy “traps” at multiple points in your vehicle helps to better shunt away the unwanted energy. Maximum protection is achieved by using a T.R.A.P.™ in every auxiliary power outlet, as well as using the T.R.A.P.™-B across the vehicle’s battery.

Does a T.R.A.P.™ protect a vehicle when the vehicle is powered off?
The T.R.A.P.™ provides transient protection even with the ignition switch turned off because interconnected cable assemblies can still receive damaging energy. The T.R.A.P.™ continues to act as a high-frequency energy sink when the vehicle is unpowered.

Will a T.R.A.P.™ or T.R.A.P.™-B drain my battery?
T.R.A.P.™ products draw essentially zero current except when there is a significant overvoltage, so they will not drain your battery.

How long will they last?
The T.R.A.P.™ and T.R.A.P.™-B devices are designed to withstand any normal vehicle transient as well as a nuclear-generated EMP without damage.

Are these devices good quality?
The T.R.A.P.™ and T.R.A.P.™-B devices are hand assembled in the US and constructed from the highest quality materials (see below).

T.R.A.P.™- The plug is made with bronze nickel plated negative contacts, gold plated center contact, and Bakelite body. It is rated for 25 Amps continuous, much more than is needed for voltage transients. The transient voltage suppression component is ultra high reliability (AEC Q101 qualified), has a turn-on time of < 1 picosecond, and can suppress up to 5,000 Watts!

T.R.A.P.™-B– The weatherproof module is IP68 rated with integrated rubber o-rings, automotive-grade wire, copper terminals, and marine-grade heatshrink. It contains the same AEC Q101 qualified transient suppression device as the T.R.A.P.™ but in a more convenient form factor for use across the battery.

What are high-saturation ferrites?
Ferrites are devices that clamp around power wires to reduce high-frequency current transients. Most ferrites will saturate and stop providing protection when more than a couple of amps flow through the wires. The custom-made high-saturation auto ferrites sold here are modified to allow significantly more current through the part before saturating. Watch the video below to better understand their function and installation.
